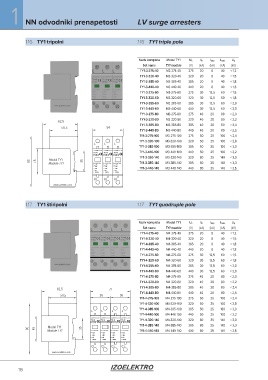

1 NN odvodniki prenapetosti LV surge arresters

1.16 TY1 tripolni 1.16 TY1 triple pole

Naziv kompleta Modul TY1 Uc In Iimp Imax Up
Set name TY1 module (V) (kA) (kA) (kA) (kV)
TY1-3-275-40 M3-275-40 275 20 8 40 < 1,2
TY1-3-320-40 M3-320-40 320 20 8 40 < 1,5
TY1-3-385-40 M3-385-40 385 20 8 40 < 1,8
TY1-3-440-40 M3-440-40 440 20 8 40 < 1,8
TY1-3-275-60 M3-275-60 275 30 12,5 60 < 1,5
TY1-3-320-60 M3-320-60 320 30 12,5 60 < 1,8
TY1-3-385-60 M3-385-60 385 30 12,5 60 < 2,0
TY1-3-440-60 M3-440-60 440 30 12,5 60 < 2,0
TY1-3-275-80 M3-275-80 275 40 20 80 < 2,0
TY1-3-320-80 M3-320-80 320 40 20 80 < 2,2
62,5
TY1-3-385-80 M3-385-80 385 40 20 80 < 2,4
50,5 54
TY1-3-440-80 M3-440-80 440 40 20 80 < 2,5
TY1-3-275-100 M3-275-100 275 50 25 100 < 2,4
TY1-3-320-100 M3-320-100 320 50 25 100 < 2,8
L L L
TY1-3-385-100 M3-385-100 385 50 25 100 < 3,0
izoelektro.com izoelektro.com izoelektro.com TY1-3-440-100 M3-440-100 440 50 25 100 < 3,2
TY1-40 TY1-40 TY1-40
T1T2 T1 T2 T1T2
TY1-3-320-140 M3-320-140 320 80 25 140 < 3,0
90 45 Modul TY1 35
Module TY1 Uc =275VAC/ 350VDC Uc =275VAC/ 350VDC Uc =275VAC/ 350VDC TY1-3-385-140 M3-385-140 385 80 25 140 < 3,3
Up =1,2kV
Up =1,2kV
Up =1,2kV
In =20kA In =20kA In =20kA
Imax =40kA Imax =40kA Imax =40kA TY1-3-440-140 M3-440-140 440 80 25 140 < 3,5
Iimp =8kA Iimp =8kA Iimp =8kA
F =50/60Hz F =50/60Hz F =50/60Hz
www.izoelektro.com
1.17 TY1 štiripolni 1.17 TY1 quadruple pole

Naziv kompleta Modul TY1 Uc In Iimp Imax Up
Set name TY1 module (V) (kA) (kA) (kA) (kV)
TY1-4-275-40 M4-275-40 275 20 8 40 < 1,2
TY1-4-320-40 M4-320-40 320 20 8 40 < 1,5
TY1-4-385-40 M4-385-40 385 20 8 40 < 1,8
TY1-4-440-40 M4-440-40 440 20 8 40 < 1,8
TY1-4-275-60 M4-275-60 275 30 12,5 60 < 1,5
TY1-4-320-60 M4-320-60 320 30 12,5 60 < 1,8
TY1-4-385-60 M4-385-60 385 30 12,5 60 < 2,0
TY1-4-440-60 M4-440-60 440 30 12,5 60 < 2,0
TY1-4-275-80 M4-275-80 275 40 20 80 < 2,0
TY1-4-320-80 M4-320-80 320 40 20 80 < 2,2
TY1-4-385-80 M4-385-80 385 40 20 80 < 2,4
62,5 72
TY1-4-440-80 M4-440-80 440 40 20 80 < 2,5
50,5 36 36
TY1-4-275-100 M4-275-100 275 50 25 100 < 2,4
TY1-4-320-100 M4-320-100 320 50 25 100 < 2,8
L L L L TY1-4-385-100 M4-385-100 385 50 25 100 < 3,0
TY1-4-440-100 M4-440-100 440 50 25 100 < 3,2
izoelektro.com izoelektro.com izoelektro.com izoelektro.com
TY1-40 TY1-40 TY1-40 TY1-40 TY1-4-320-140 M4-320-140 320 80 25 140 < 3,0
T1T2 T1 T2 T1T2 T1 T2
TY1-4-385-140 M4-385-140 385 80 25 140 < 3,3
Modul TY1
90 45 Module TY1 35 Uc =275VAC/ 350VDC Uc =275VAC/ 350VDC Uc =275VAC/ 350VDC Uc =275VAC/ 350VDC TY1-4-440-140 M4-440-140 440 80 25 140 < 3,5
Up =1,2kV Up =1,2kV Up =1,2kV Up =1,2kV
In =20kA In =20kA In =20kA In =20kA
Imax =40kA Imax =40kA Imax =40kA Imax =40kA
Iimp =8kA Iimp =8kA Iimp =8kA Iimp =8kA
F =50/60Hz F =50/60Hz F =50/60Hz F =50/60Hz
www.izoelektro.com
